Remote Control System antenna M2M Telemeter antenna

Remote Control System antenna M2M Telemeter antenna

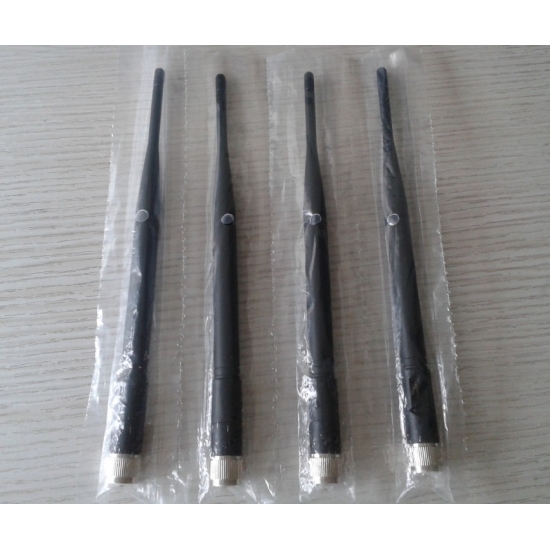

WHWIRELESS The rubber antenna WH-GSM-OR3 with a TNC male connector is a type of antenna commonly used in wireless communication systems, such as GSM networks, public wireless hotspots, and wireless video systems. It is designed with a tilt-and-swivel RP-TNC plug connector, which allows for easy adjustment and positioning of the antenna for optimal signal reception.

The antenna is omnidirectional, It is commonly referred to as a "rubber duck" antenna due to its flexible rubberized construction, which makes it durable and resistant to damage from environmental factors.

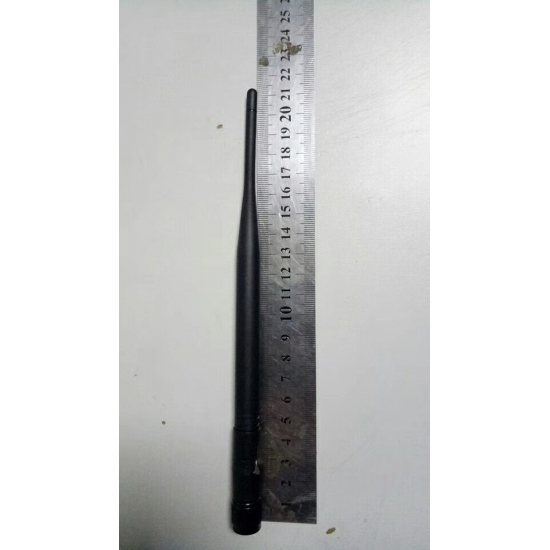

The rubber antenna is approximately 210mm (21cm) long, providing a compact and low-profile design that can be easily installed in various devices or equipment. It is designed to be used in wireless communication systems that require reliable signal reception and transmission, such as in wireless routers, access points, modems, and other wireless devices.

brand:
whwireless
item no.:
WH-GSM-OR3
payment:
T/T
product origin:
china
color:
black
lead time：
4 working day

Inquiry now

Frequency[MHz] : 806~894/1850~1990
Gain [dBi] :3
VSWR :<1.5
Max power [W] :10
Impedance [Ω] :50

Weight [g] :26
Dimension: [mm] :φ12×210
Connector :Dipole SMA elbow right angle male
Colour:black
Temperature [℃] :-40~+60

Hot Tags :

GSM DTMF Controller antenna
wireless data transfer antenna
